What is Custom Investment Casting and Its Industrial Applications

Custom Investment Casting is a manufacturing process utilized by a Custom Investment Casting factory to create intricate metal components with exceptional precision. Industries rely on OEM Investment casting service to produce tailored parts that meet specific requirements. With a global market size projected to grow from $17.39 billion in 2023 to $27.22 billion by 2032, this method of producing OEM Precision casting products continues to revolutionize modern manufacturing.

Understanding the Custom Investment Casting Process

Custom Investment Casting involves several precise steps to create high-quality metal components. Each stage contributes to the accuracy and durability of the final product.

Creating the Wax Pattern

The process begins with tooling, where precision-machined molds are crafted to form wax patterns. These patterns replicate the exact dimensions of the desired part. Workers inject wax into the molds, creating a detailed replica. Multiple wax patterns are then assembled onto a central wax tree, preparing them for the next stage.

Building the Ceramic Shell Mold

The Wax Assembly is dipped into a ceramic slurry, forming a strong outer shell. This step is repeated several times to build a durable mold capable of withstanding high temperatures. Once the shell is thick enough, it is left to dry and harden.

Melting and Removing the Wax

To remove the wax, the ceramic shell is heated in an autoclave or oven. The heat melts the wax, which drains away, leaving a hollow mold. This step ensures the mold is ready for the molten metal. Temperatures during this process can range from 1600 to 2000 degrees Fahrenheit, depending on the material.

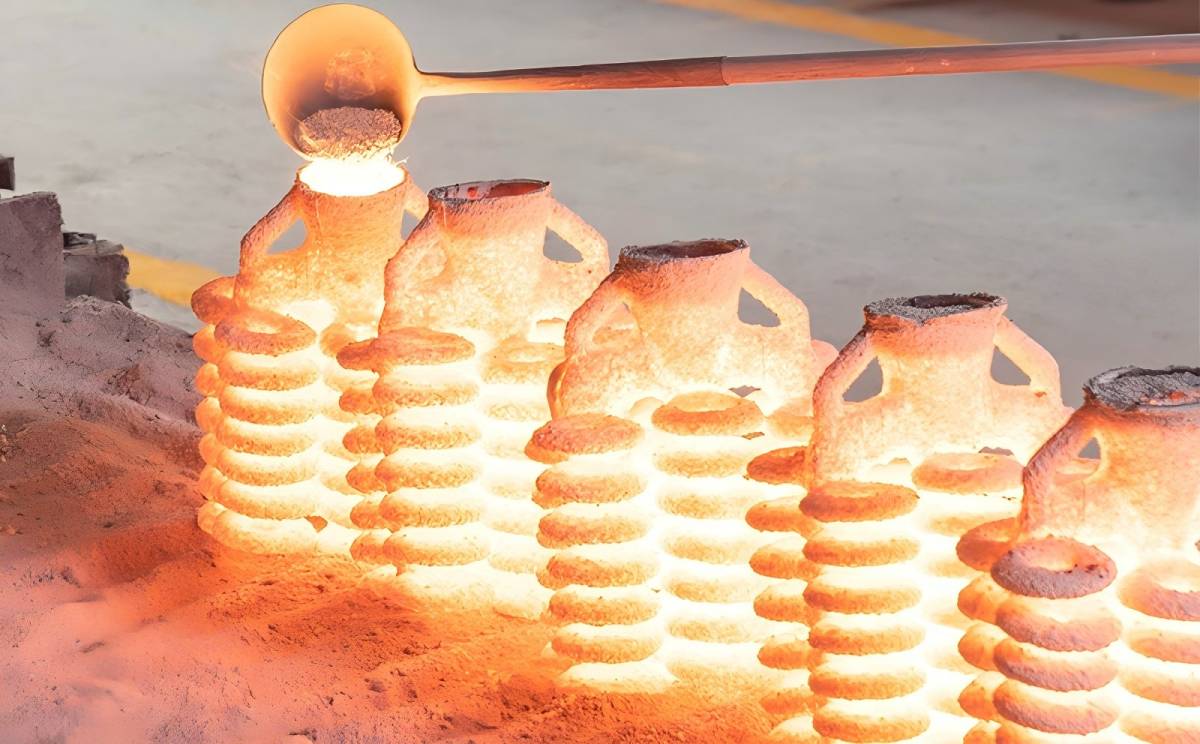

Pouring the Molten Metal

Molten metal, such as aluminum or zinc, is poured into the ceramic mold. Each metal serves specific industrial purposes. For example:

The metal fills the mold, capturing every intricate detail.

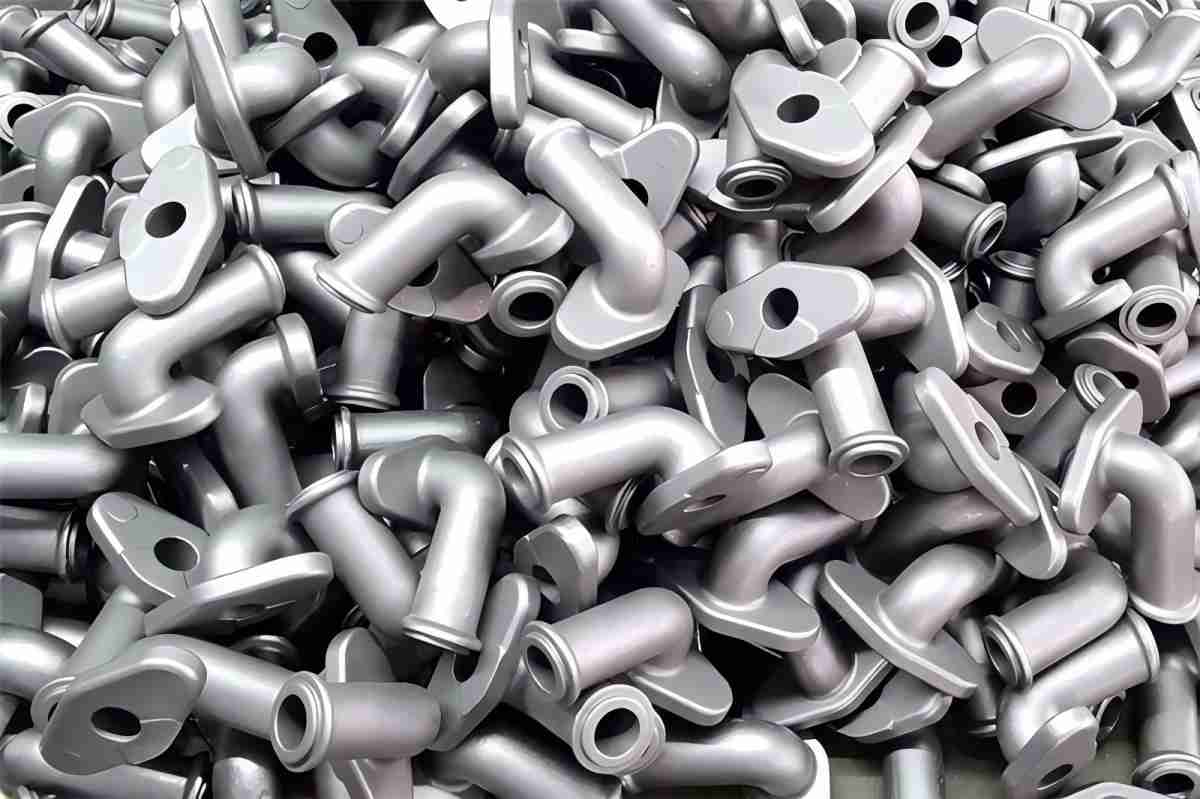

Cooling, Breaking the Mold, and Finishing

Once the metal cools and solidifies, workers break the ceramic shell to reveal the cast part. Additional treatments, like heat treatment or sandblasting, enhance the mechanical properties and surface finish. Finally, quality inspections ensure the product meets specifications before delivery.

This meticulous process allows a Custom Investment Casting Factory to produce components with exceptional precision and reliability.

Advantages of Custom Investment Casting

High Precision and Complex Geometries

Custom investment casting excels in creating parts with intricate shapes and tight tolerances. This process captures fine details that other methods struggle to achieve. For example, in the medical field, it produces custom orthopedic implants like hip and knee replacements. These components are tailored to fit patients perfectly, improving their functionality and comfort. Similarly, aerospace industries rely on this method for parts requiring exceptional dimensional accuracy, ensuring performance under extreme conditions. The ability to replicate complex geometries makes this process a go-to choice for industries demanding precision.

Material Versatility

One of the standout features of custom investment casting is its compatibility with a wide range of materials. Industries can choose from aluminum for lightweight strength, stainless steel for corrosion resistance, or brass for aesthetic appeal. This versatility allows manufacturers to meet specific performance and durability needs. For instance, aerospace companies often use nickel and cobalt alloys for high-temperature applications, while decorative industries prefer bronze for its visual charm. A Custom Investment Casting factory can tailor materials to suit diverse industrial requirements.

Cost-Effectiveness for High-Quality Parts

Investment casting reduces costs by minimizing machining and assembly steps. Complex parts can be cast as single components, saving time and resources. The process also achieves tight tolerances and smooth finishes, cutting down on post-casting work. Additionally, it’s ideal for low-volume production without requiring expensive tooling. These factors make it a cost-effective solution for producing high-quality parts.

Minimal Material Waste and Sustainability

This process generates minimal waste, as ceramic shells can often be reclaimed and reused. By optimizing material usage, it reduces environmental impact and lowers costs. Manufacturers benefit from a sustainable approach that aligns with modern eco-friendly practices. The reduced waste not only saves resources but also supports industries aiming to minimize their carbon footprint.

Applications of Custom Investment Casting in Industries

Aerospace Industry: Turbine Blades, Engine Components

The aerospace industry demands precision and reliability, making custom investment casting a perfect fit. This process produces components like turbine blades, engine parts, and hydraulic system units. It also creates air and fuel system parts, cabin control system components, and landing control system units. These parts must endure extreme conditions while maintaining performance. Custom investment casting ensures they meet these rigorous standards with exceptional accuracy and durability.

Automotive Industry: Lightweight and Durable Parts

In the automotive sector, custom investment casting plays a vital role in creating lightweight yet durable components. Manufacturers use this process for engine parts like cylinder heads, intake manifolds, and camshafts. It’s also ideal for transmission components, including gears and shafts, as well as suspension parts like control arms and knuckles. By using materials like aluminum and titanium alloys, a Custom Investment Casting factory helps improve vehicle performance and fuel efficiency.

Medical Sector: Surgical Instruments, Implants

Custom investment casting excels in the medical field, where precision and biocompatibility are essential. It produces surgical tools and implants with intricate designs and smooth finishes. This process supports materials like cobalt-chromium and titanium alloys, ensuring safety and reliability. A Custom Investment Casting factory can create implants tailored to individual patients, improving outcomes and reducing surgery times.

Energy Sector: Components for Power Generation

Power generation relies on custom investment casting for critical components. Turbine blades, vanes, and fuel nozzles are just a few examples. This process also produces swirlers, impellers, and combustor support baskets. These parts must withstand high temperatures and pressures, and custom investment casting ensures they perform efficiently and last longer.

Marine Industry: Propellers, Pumps, and Valves

The marine industry benefits from custom investment casting for its ability to produce corrosion-resistant components. Propellers, pumps, and valves are commonly made using this method. These parts must endure harsh environments, and a Custom Investment Casting factory ensures they meet the required durability and performance standards.

Custom Investment Casting factory Applications in Other Sectors

Custom investment casting finds unique applications across various industries. For example:

This versatility highlights the adaptability of custom investment casting in meeting diverse industrial needs.

Custom investment casting stands out for its precision and versatility. It achieves tight tolerances, around 0.1 mm for the first 25 mm, making it ideal for intricate designs. Industries benefit from its ability to cast diverse materials and create near-net shapes, reducing waste and costs.

Companies like medical device manufacturers and automotive leaders have adopted this process to improve efficiency and product performance. Whether for aerospace, energy, or marine applications, custom investment casting delivers reliable results.

Explore this innovative method to meet your industry’s unique needs and achieve exceptional quality.

FAQ

What makes custom investment casting suitable for small-batch production?

Custom investment casting supports small-batch production by reducing tooling costs and offering flexibility. Companies can produce high-quality parts without committing to large-scale manufacturing.

How does a Custom Investment Casting factory ensure quality?

Factories follow strict quality control measures, including inspections and testing. This ensures every part meets precise specifications and performs reliably in its intended application.

Can custom investment casting handle unique designs?

Absolutely! This process excels at creating intricate and unique designs. It captures fine details, making it ideal for tailored components across industries like aerospace, medical, and automotive.

💡 Tip: If you need small-batch, high-quality parts with complex designs, custom investment casting is a great choice!
